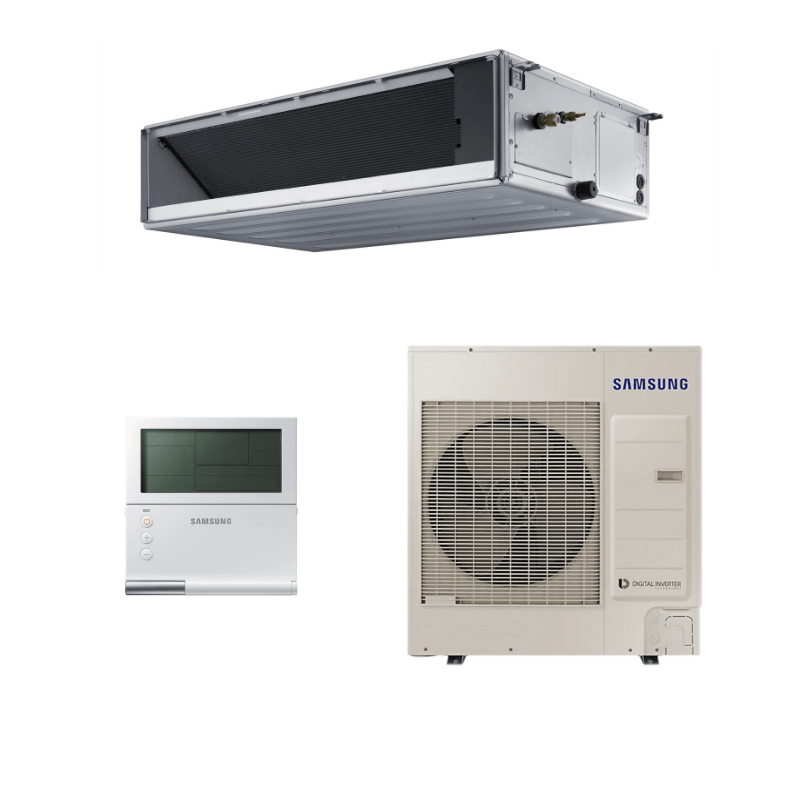

Samsung 8.5kW Duct S2 Inverter Ducted Air Conditioner | 1 Phase

The Samsung Duct S2 has a powerful airflow that allows for quick cooling in any home. The compact design of this ducted air conditioning system also makes it easy to install almost anywhere.

Features of Samsung Duct S2 8.5kW:

  • Twin BLCD compressor and auto ESP.
  • Demand Response Enabled Device (D.R.E.D)
  • 3-way service access
  • Digital Inverter Technology

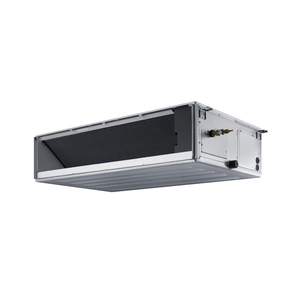

Indoor : AC090NHDKG/SA 8.5kW

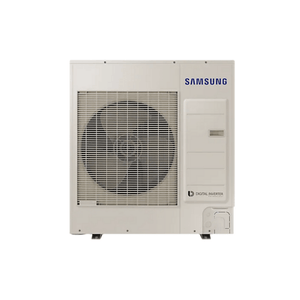

Outdoor : AC090TXAPKG/SA 8.5kW

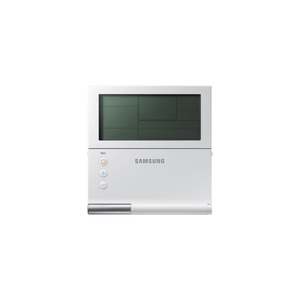

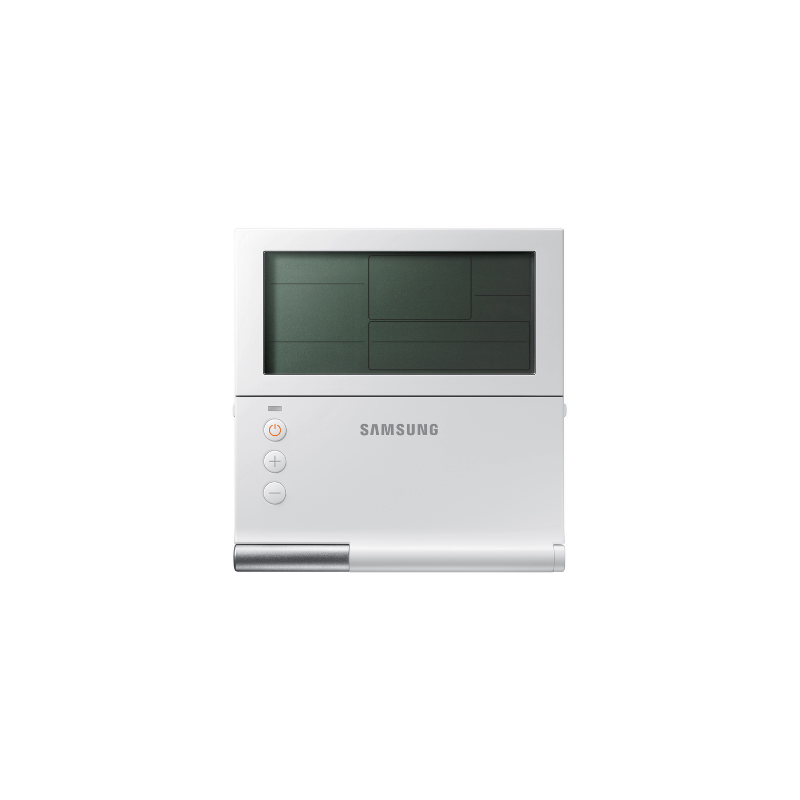

Controller : MWR-WE13N

Features

Powerful airflow for fast cooling

More fans than ever

Samsung Duct S2 provides powerful airflow for fast cooling for your home. With 2 fans in the 5.2kW model and 3 fans in the 7.1kW-14kW models, the Duct S2 will provide the airflow for comfort when you needed most.

Low running cost

The Duct S2’s highly efficient air conditioning system helps to avoid a hefty bill – meaning you can run your air conditioning all day long.

Lightweight and easy to install

Ultimate Convenience

Duct S2 is designed to help make installation easy, with its lightweight and compact indoor unit. Larger capacity models (16kW and above) can be easily separated for handling and manoeuvring into tight installation spaces.

Hello R32 Refrigerant!

Low GWP (Global Warming Potential) refrigerant

Samsung has added the new eco-friendly R32 refrigerant to its air conditioning range. R32 Refrigerant has a low Global Warming Potential (GWP)* and a zero Ozone Depletion Potential (ODP) effect – which helps to protect the ozone layer!

Comfortable and Reliable

Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely
hot or cold days. With an operating range of -15°C to 50°C outside air temperature for cooling,
and -20°C to 24°C for heating, you can be assured that your unit can work when you need it*.
Its smart inverter system delivers your set temperature quickly, and keeps performing fine tune adjustments to ensure a constant, comfortable environment.

Rest assured with Samsung quality

5 Year Parts and Labour Warranty

Peace of mind knowing we have you covered with Samsung’s 5 year parts and labour warranty for residential applications. For full terms and conditions visit Samsung Warranty

Specifications
Model Indoor Unit AC090TNHDKG/SA
Outdoor Unit AC090TXAPKG/SA
Refrigerant R32
Capacity Cooling (Min/Std/Max) kW 3.0 / 8.5 / 11.5
Heating (Min/Std/Max) kW 2.8 / 10.0 / 15.5
Efficiency Energy Grade (Cooling) EER 3.30
Energy Grade (Heating) COP 3.70
Energy Grade (Cooling) AEER 3.28
Energy Grade (Heating) ACOP 3.69
Electrical MCA A 26.3
MFA A 30
Power Supply Φ, #, V, Hz 1-phase, 220-240V, 50Hz
Indoor Unit Air Flow Rate (H, M, L) l/s 530 / 450 / 370
ESP (L,M,H) Pa 29 / 49 / 147
Sound Pressure @ 1.5m (H/L) dB(A) 42 / 37 / 32
Supply Air Opening (WxH) mm 1168 x 220
Return Air Opening (WxH) mm 1168 x 220
Net Weight kg 33.5
Unit Dimensions (WxHxD) mm 1200 x 250 x 700
Drain connection size mm OD 32 / ID 25
Power Supply Φ, #, V, Hz 1-phase, 220-240V, 50Hz
Type Twin BLDC Rotary
Outdoor Unit Sound Pressure @ 1m (Cool/Heat) dB(A) 51 / 53
Sound Power (Cooling – High) dB(A) 68
Net Weight kg 75
Shipping weight kg 80
Net Dimensions (WxHxD) mm 940 x 998 x 330
Shipping Dimensions (WxHxD) mm 995 x 1096 x 426
Installation Liquid Pipe 9.52, 3/8″
Gas Pipe 15.8, 5/8″
Max. Allowable Piping Length m 50
Max. Allowable Piping Height (outdoor m 30
Pre-charged Length m 30
Operating Range Cooling ºC -15 to 50
Heating ºC -20 to 24



Warranty

All systems sold by Airconnex have a 5 year manufacturers warranty parts and labour.

For more details refer to each Manufacturers warranty guidelines.

View warranty page
