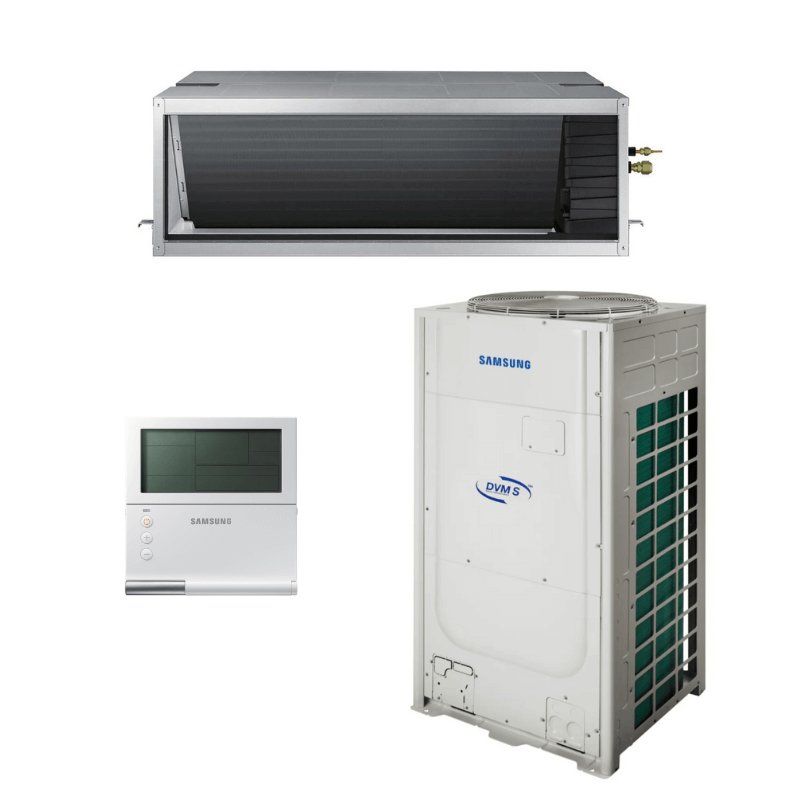

Samsung 20kW Duct S2 Inverter Ducted Air Conditioner | 3 Phase

The Samsung S2 20kW is a very energy-efficient system that may be installed in a variety of locations. It utilises less energy for the same airflow.

The splittable type indoor unit’s fan and heat exchanger may be separated. Making it easier to install into tight roof spaces.

Features of Samsung Duct S2 20kW:

  • Twin BLCD compressor
  • Demand Response Enabled Device (D.R.E.D)
  • 3-way service access
  • Digital Inverter Technology

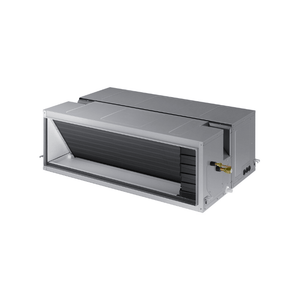

Indoor : AC200JNHFKH/SA 20.0kW Duct S2 Splittable Indoor

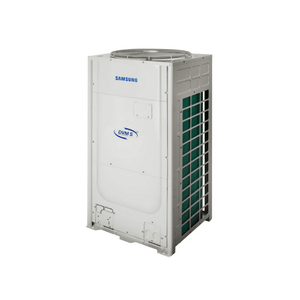

Outdoor : AC200JXAFNH/SA 20.0kW R32

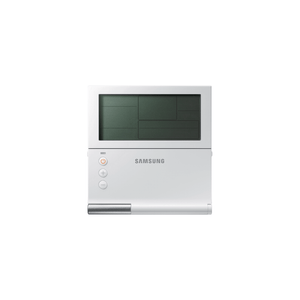

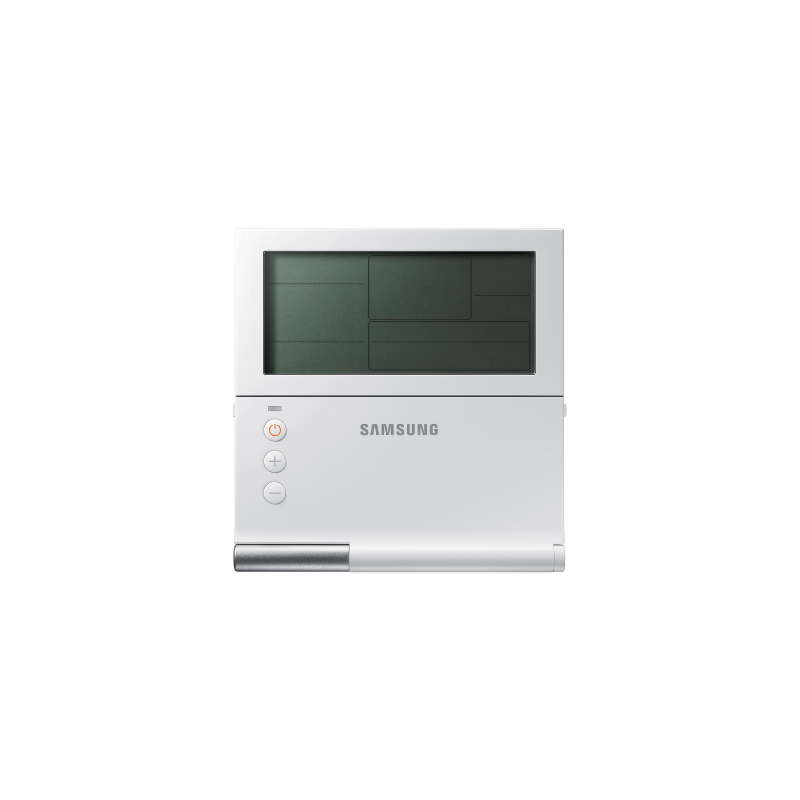

Controller : MWR-WE13N

Features

Powerful airflow for fast cooling

More fans than ever

Samsung Duct S2 provides powerful airflow for fast cooling for your home. With 2 fans in the 5.2kW model and 3 fans in the 7.1kW-14kW models, the Duct S2 will provide the airflow for comfort when you needed most.

Low running cost

The Duct S2’s highly efficient air conditioning system helps to avoid a hefty bill – meaning you can run your air conditioning all day long.

Lightweight and easy to install

Comfortable and Reliable

Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely
hot or cold days. With an operating range of -15°C to 50°C outside air temperature for cooling,
and -20°C to 24°C for heating, you can be assured that your unit can work when you need it*.
Its smart inverter system delivers your set temperature quickly, and keeps performing fine tune adjustments to ensure a constant, comfortable environment.

Rest assured with Samsung quality

5 Year Parts and Labour Warranty

Peace of mind knowing we have you covered with Samsung’s 5 year parts and labour warranty for residential applications. For full terms and conditions visit Samsung Warranty



Specifications
Model Name Indoor Unit AC200JNHFKH/SA
Outdoor Unit AC200JXAFNH/SA
Power Supply Indoor Unit kW 220-240V 1-phase
Outdoor Unit kW 380-415V 3-phase
Capacity Cooling (Min/Std/Max)1 6.2/20.0/22.5
Heating (Min/Std/Max)2 5.0/22.5/25.0
Efficiency EER (Std, Cooling) 3.3
COP (Std, Heating) 3.7
Circuit Amps MCA A 25.0
MFA A 31.3
Indoor unit Airflow Rate (H,M,L) l/s 1200/1016/850
ESP (H,M,L) Pa 196/72/49
Sound Pressure @ 1.5m (H/L)3 dB(A) 44/40/36
Unit Dimensions (WxHxD) mm 1,350 x 450 x 910
Weight kg 82.5
Supply Air Opening (WxH) mm 1284 x 360
Return Air Opening (WxH) mm 1284 x 360
Drain pipe connection mm OD25, ID20
Drain pump (Optional) MDP-G075SQ (internal type), MDP-G075SP (externl type)
Outdoor Unit Compressor Type BLDC Scroll
Sound Pressure @ 1m (H/L)3 dB(A) 57.0/59.0
Weight kg 190
Unit Dimensions (WxHxD) mm 880 x 1,695 x 765
Pipe Connection Liquid Pipe mm, in 9.52, 3/8″
Gas Pipe mm, in 19.05, 3/4″
Installation Max. Length m 150(150)
Max. Height m 50(40)
Refrigerant Type R410A
Factory Charge kg 8.0
Additional Charge kg +60g/m over 30m
Operating Temp. Range Cooling -15 to 50
Heating -20 to 24
