Daikin 14kW 3 Phase Inverter Ducted Air Conditioner FDYAN140
Next Day Delivery
If you checkout before 10am
Flexible Payment Options
Different payment options available
Guarantee Safe Checkout

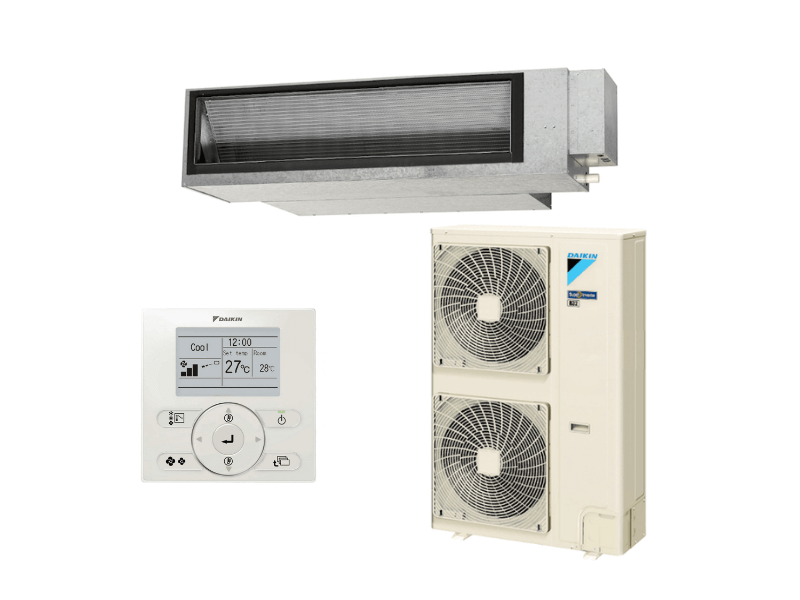

DAIKIN FDYAN140A-CV 14.0kW Inverter Ducted System | 3 Phase
Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

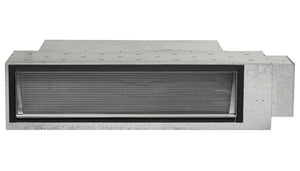

Indoor : FDYAN140AV1

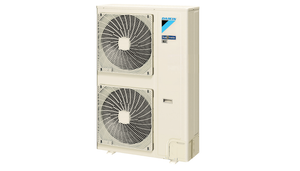

Outdoor : RZA140CY1

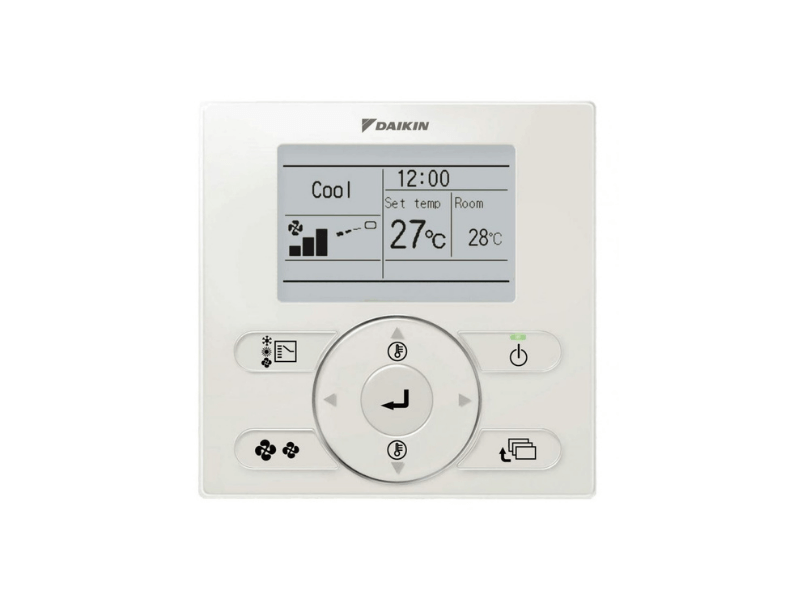

Controller : BRC1E63

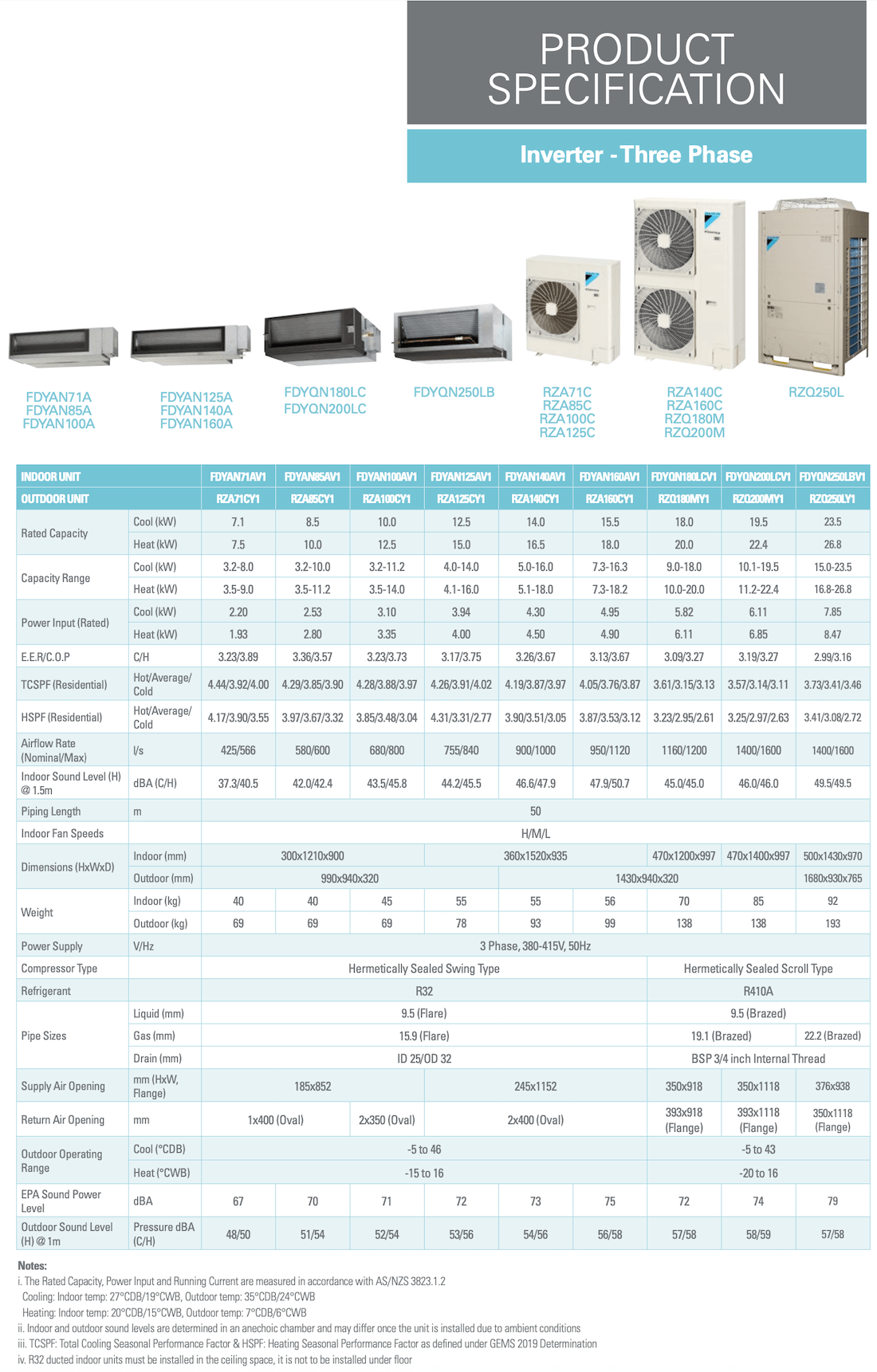

Specifications
| INDOOR UNIT | FDYAN140AV1 | |
| OUTDOOR UNIT | RZA140CY1 | |
| Rated Capacity | Cool (kW) | 14.0 |
| Heat (kW) | 16.5 | |
| Capacity Range | Cool (kW) | 5.0-16.0 |
| Heat (kW) | 5.1-18.0 | |
| Power Input (Rated) | Cool (kW) | 4.30 |
| Heat (kW) | 4.50 | |
| E.E.R./C.O.P. | Cool/Heat | 3.26/3.67 |
| Air Flow Rate (Rated) | I/S | 900 |
| Indoor Sound Level (@1.5m) | dBA | 46.6/47.9 |
| Piping Length | (m) | 50 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 360x1520x935 |
| Outdoor (mm) | 1430x940x320 | |
| Weight | Indoor(kg) | 55 |
| Outdoor(kg) | 93 | |
| Power Supply | V/Hz | 3 Phase, 380-415V, 50Hz |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant | R32 | |
| Pipe Sizes | Liquid (mm) | 9.5 (Flared) |
| Gas (mm) | 15.9 (Flared) | |
| Drain (mm) | ID 25 / OD 32 | |
| Supply Air Opening | mm (HxW, Flange) | 245x1152 |
| Return Air Opening | mm (Oval) | 2x400 (Oval) |
| Outdoor Operating Range | Cool (°CDB) | - 5 to 46 |
| Heat (°CWB) | - 15 to 16 | |
| EPA Sound Power Level | dBA | 73 |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 54/56 |
Warranty
All systems sold by Airconnex have a 5 year manufacturers warranty parts and labour.
For more details refer to each Manufacturers warranty guidelines.
