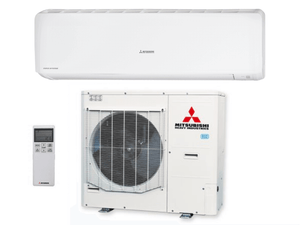

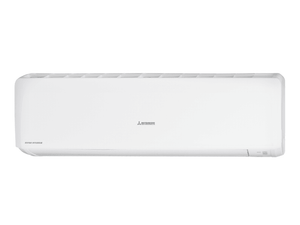

Mitsubishi Heavy Industries Bronte 10kW Split System | Three phase SRK100ZR-W /

FDCA100VSA-W 10.0 kW Cooling | 11.2 kW Heating

Recommended by CHOICE®*, the BRONTE® series is the ideal solution for heating and cooling of larger spaces within your home.

Incorporating the same advanced fan blade technology used in the development of jet engines, the BRONTE® series features a market leading long reach airflow allowing it to efficiency deliver a powerful yet quiet and evenly distributed airflow.

Packed with a range of convenient features including the Allergen Clear System, 3D Auto Mode and a range of timer functions, the BRONTE® series is the ideal addition to any modern home.

  • Advanced jet air technology delivering long reach airflow
  • Allergen clear system to capture and eliminate allergens
  • Wide range of convenient timer functions
  • Energy efficient R32 refrigerant
  • Optional Wi-Fi control

9.5kW Bronte Mitsubishi heavy industries

Features

Mitsubishi Heavy Industry Bronte Series Function SRK63ZRAW SRK71ZRAW SRK80ZRAW SRK95ZRAW

Specifications

CAPACITY 10.0kW
Indoor SRK100ZR-W
Outdoor FDCA100VSA-W
Power Source (Outdoor Unit) 3 Phase 380-415V 50Hz


*Operation Data



Nominal Capacity (Range)

Cooling T1

kW

10.0 (4.0~11.2)
Heating H1 11.2 (4.0 ~12.5)
Heating H2 7.7
Power Consumption Cooling T1 3.19
Heating H1 3.04
Maximum Power Consumption 10.20
Running Current Cooling T1

A

4.8
Heating H1 4.6
Inrush Current, Maximum Current 5, 15
EER Cooling T1 3.13
COP Heating H1 3.68
Sound Power Level

(JIS C9612)

Outdoor

dB(A)

69
Sound Pressure Level (JIS C9612) Indoor 48-45-40-27
Outdoor 54


Energy Label (GEMS 2019)

Hot Cooling

Stars

 (3)
Heating  (2.5)
Average Cooling  (2.5)
Heating (1.5)
Cold Cooling (3)
Heating  (1)
External dimensions (HXWXD) Indoor mm 339x1197x262
Outdoor 845x970x370
Net weight Indoor kg 16.5
Outdoor 78
Airflow Cooling (Indoor) l/s 408-355-293-173
Heating (Indoor) 458-386-318-227


Installation Data

Refrigerant (Type, Amount, Pre-charge Length) Quantity kg (R32) 3.3
Pre-Charged to Pipe m 30
Refrigerant Piping Liquid line mm Ø9.52
Gas line Ø15.88
Connection Method Flare connection
Maximum Pipe Length (One Way)

m

50
Max Vertical Height Diff. Between

O.U. and I.U.

50 ( O.U above I.U ) / 15 ( O.U below I.U )
Standard accessories Allergen Clear & Photocatalytic Washable Deodorizing Filter
Optional parts Interface kit (SC-BIKN2-E) / Wi-Fi Kit
Demand Response (AS4755) Yes

Warranty

All systems sold by Airconnex have a 5 year manufacturers warranty parts and labour.

For more details refer to each Manufacturers warranty guidelines.
