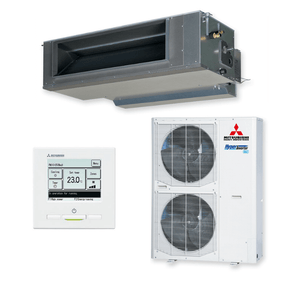

Mitsubishi Heavy Industries FDUA140VH / FDCA140VNX-W 14kW High Static Ducted System | Single Phase

Indoor: FDUA140VH

Outdoor: FDCA140VNX-W

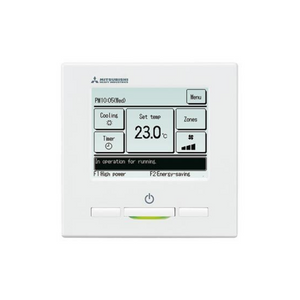

Backlit Controller: RC-EXZ3A

Specifications

CAPACITY 14.0KW
Set FDUA140AVNXWVH
Indoor FDUA140VH
Outdoor FDCA140VNX-W
Power Source (Outdoor Unit) 1 Phase 240V 50Hz











*Operation Data




Nominal Capacity Range

Cooling T1




kW

14.0 (5.0-14.5)
Heating H1 16.0 (4.0-18.0)
Heating H2 15.50



Power Consumption

Cooling T1 4.02
Heating H1 4.19
Max Power Consumption 5.77



Running Current

Cooling T1


A

17.8
Heating H1 18.6
Inrush Current, Maximum Current 5, 30
EER Cooling T1   3.48
COP Heating H1 3.82
Sound Power Level (JS C9612) Outdoor



dB(A)

73
Sound Pressure Level (JS C9612) Indoor P-Hi:48 Hi:47 Me:43 Lo:38
Outdoor 54



External Dimensions (HXWXD)

Indoor


mm

398x1450x930
Outdoor 1300x970x370



Net Weight

Indoor


Kg

66
Outdoor 97
Supply Air Connection


mm

298×1064
Return Air Connection 2 X Ø400
External Static Pressure (Max) Pa 150
Airflow Indoor (Cooling) l/s P-Hi:1000 Hi:867


Me:733 Lo:600

Indoor (Heating)



Refrigerant (Type, Amount, Pre-charge Length)

Quantity kg (R32) 4.0
Pre Charged To Pipe


Length

m 30





Installation Data




Refrigerant Piping

Liquid Line


mm

Ø9.52
Gas Line Ø15.88
Connection Method   Flare connection
Maximum Pipe Length (One Way)


m

100
Max vertical height diff. between O.U. and I.U. 30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Safety Pan (Optional) N/A
Motion Sensor (Optional) LB-KIT2
Demand response (AS4755) Yes
Outdoor air temperature (upper, lower limits) Cooling


oC

-15 to 50
Heating -20 to 20

Warranty

All systems sold by Airconnex have a 5 year manufacturers warranty parts and labour.

For more details refer to each Manufacturers warranty guidelines.
