| CAPACITY | 12.5KW | |||
| Set | FDUA125AVSXWVH | |||
| Indoor | FDUA125VH | |||
| Outdoor | FDCA125VSX-W | |||
| Power Source (Outdoor Unit) | 3 Phase 380-415V 50Hz | |||
|
*Operation Data |
Nominal Capacity Range |
Cooling T1 |
kW |
12.5 (5.0-14.0) |
| Heating H1 | 14.0 (4.0-18.0) | |||
| Heating H2 | 14.20 | |||
|
Power Consumption |
Cooling T1 | 3.83 | ||
| Heating H1 | 3.68 | |||
| Max Power Consumption | 7.66 | |||
|
Running Current |
Cooling T1 |
A |
6.4 | |
| Heating H1 | 6.2 | |||
| Inrush Current, Maximum Current | 5, 18 | |||
| EER | Cooling T1 | 3.26 | ||
| COP | Heating H1 | 3.80 | ||
| Sound Power Level (JS C9612) | Outdoor |
dB(A) |
70 | |
| Sound Pressure Level (JS C9612) | Indoor | P-Hi:46 Hi:44 Me:42 Lo:38 | ||
| Outdoor | 54 | |||
|
External Dimensions (HXWXD) |
Indoor |
mm |
398x1150x650 | |
| Outdoor | 1300x970x370 | |||
|
Net Weight |
Indoor |
Kg |
52 | |
| Outdoor | 99 | |||
| Supply Air Connection |
mm |
348×898 | ||
| Return Air Connection | 348×898 | |||
| External Static Pressure (Max) | Pa | 200 | ||
| Airflow | Indoor (Cooling) | l/s | P-Hi:717 Hi:650
Me:600 Lo:500 |
|
| Indoor (Heating) | ||||
|
Refrigerant (Type, Amount, Pre-charge Length) |
Quantity | kg | (R32) 4.0 | |
| Pre Charged To Pipe
Length |
m | 30 | ||
|
Installation Data |
Refrigerant Piping |
Liquid Line |
mm |
Ø9.52 |
| Gas Line | Ø15.88 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m |
100 | ||
| Max vertical height diff. between O.U. and I.U. | 30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2 | |||
| Safety Pan (Optional) | UA-SP2-E | |||
| Motion Sensor (Optional) | LB-KIT2 | |||
| Demand response (AS4755) | Yes | |||
| Outdoor air temperature (upper, lower limits) | Cooling |
oC |
-15 to 50 | |
| Heating | -20 to 20 | |||
Mitsubishi Heavy Industries 12.5kW 3 Phase Inverter Ducted System FDUA125AVSXWVH
Next Day Delivery
If you checkout before 10am
Flexible Payment Options
Different payment options available
Guarantee Safe Checkout

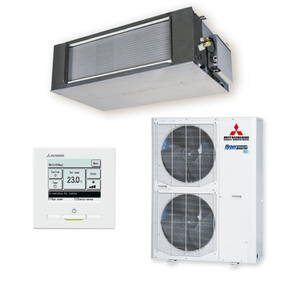

Mitsubishi Heavy Industries FDUA125VH / FDCA125VSX-W 12.5kW High Static Ducted System | Three Phase
Indoor: FDUA125VH
Outdoor: FDCA125VSX-W - 3 Phase

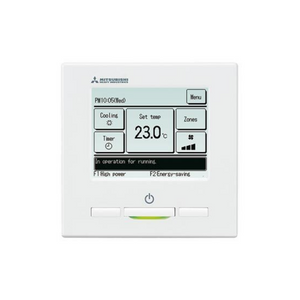

Backlit Controller: RC-EXZ3A
Specifications
Warranty
All systems sold by Airconnex have a 5 year manufacturers warranty parts and labour.
For more details refer to each Manufacturers warranty guidelines.
