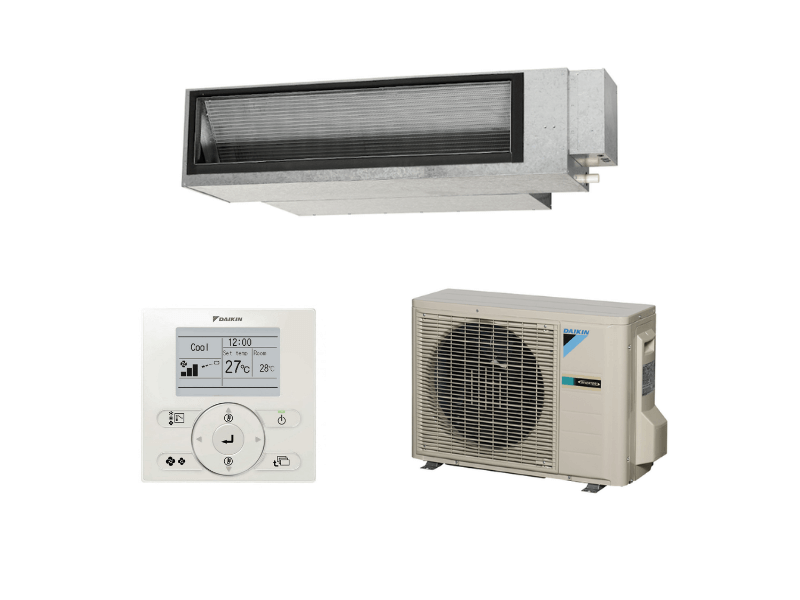

DAIKIN FDYAN60A-CV 6kW Inverter Ducted System | Single phase
Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
6kW Cooling – 7kW Heating Capacity

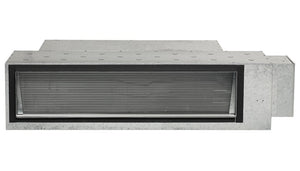

Indoor : FDYAN60AV1

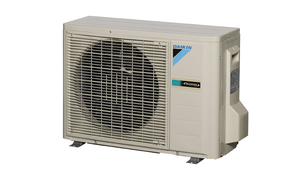

Outdoor: RZA60CV1

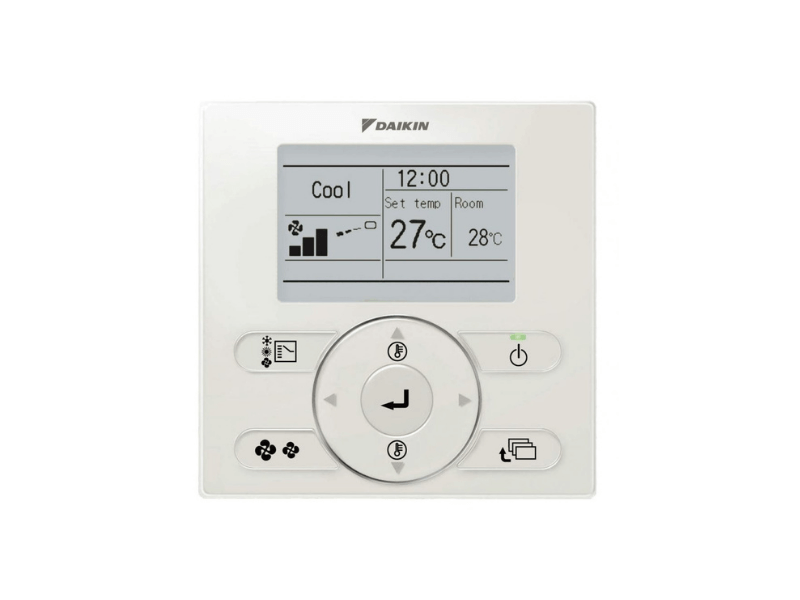

Back lit Wall Controller: BRC1E63
Perfect for 3 bedrooms

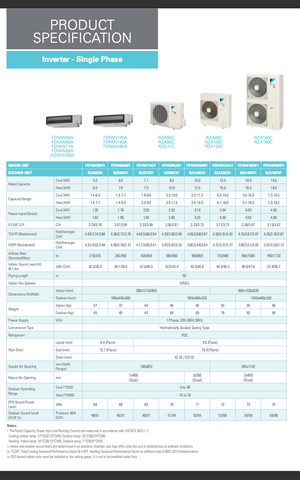

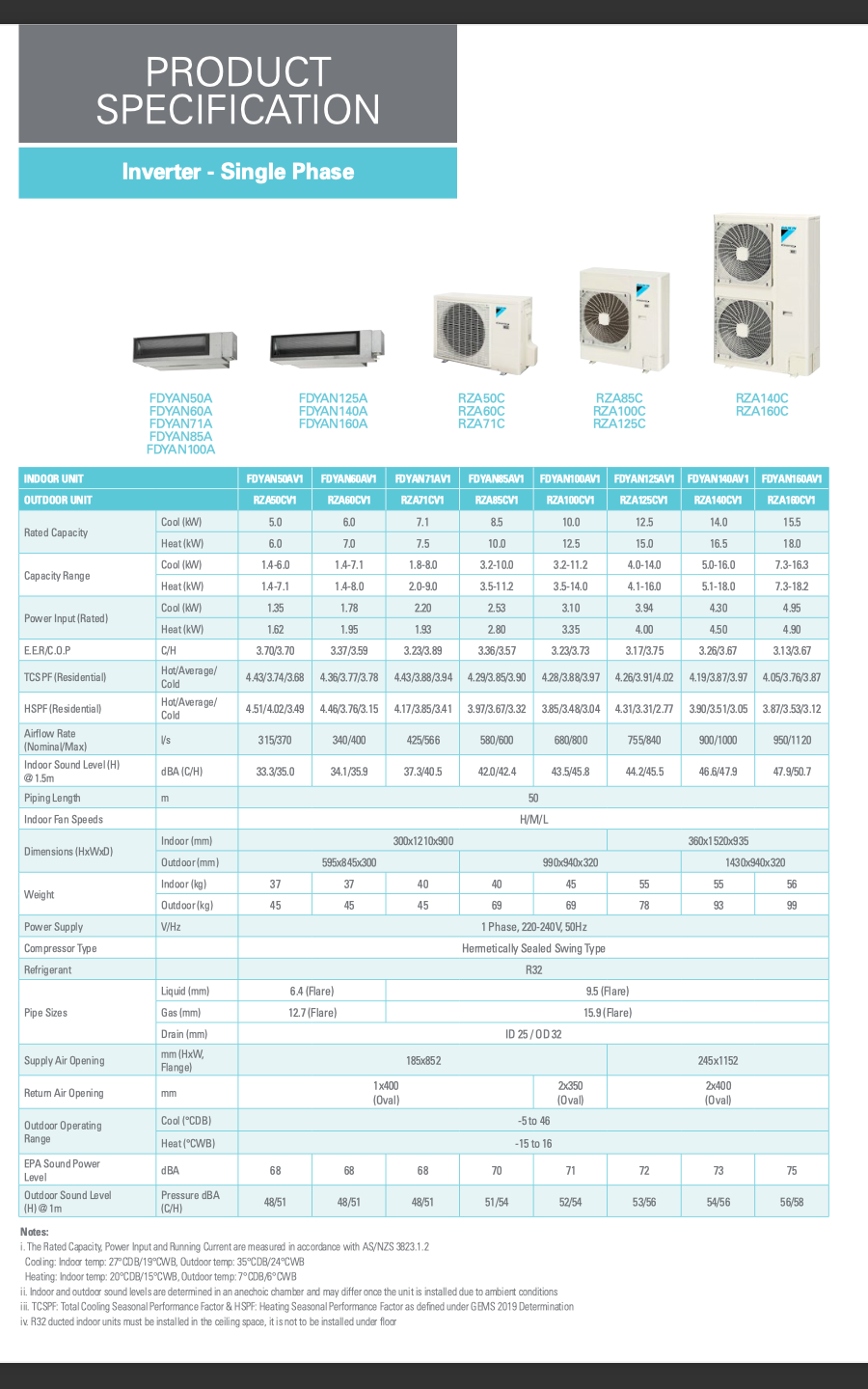

Specifications
| INDOOR UNIT | FDYAN60AV1 | |
| OUTDOOR UNIT | RZA60CV1 | |
| Rated Capacity | Cool (kW) | 6.0 |
| Heat (kW) | 7.0 | |
| Capacity Range | Cool (kW) | 1.4-7.1 |
| Heat (kW) | 1.4-8.0 | |
| Power Input (Rated) | Cool (kW) | 1.78 |
| Heat (kW) | 1.95 | |
| E.E.R./C.O.P. | Cool/Heat | 3.37/3.59 |
| Air Flow Rate (Rated) | I/S | 340 |
| Indoor Sound Level (@1.5m) | dBA | 34.1/35.9 |
| Piping Length | (m) | 50 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 300x1210x900 |
| Outdoor (mm) | 595x845x300 | |
| Weight | Indoor(kg) | 37 |
| Outdoor(kg) | 45 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant | R32 | |
| Pipe Sizes | Liquid (mm) | 6.4 (Flared) |
| Gas (mm) | 12.7 (Flared) | |
| Drain (mm) | ID 25 / OD 32 | |
| Supply Air Opening | mm (HxW, Flange) | 185x852 |
| Return Air Opening | mm (Oval) | 1x400 (Oval) |
| Outdoor Operating Range | Cool (°CDB) | - 5 to 46 |
| Heat (°CWB) | - 15 to 16 | |
| EPA Sound Power Level | dBA | 68 |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 48/51 |
Warranty
All systems sold by Airconnex have a 5 year manufacturers warranty parts and labour.
For more details refer to each Manufacturers warranty guidelines.
