Daikin 12.5kW Inverter Ducted Air Conditioner FDYAN125

Regular price $5,287.00 Sale price $4,391.00
17% OFF
40
People are viewing this right now

Next Day Delivery
If you checkout before 10am

Flexible Payment Options

Different payment options available

Guarantee Safe Checkout

Visa
PayPal
Mastercard

Overview

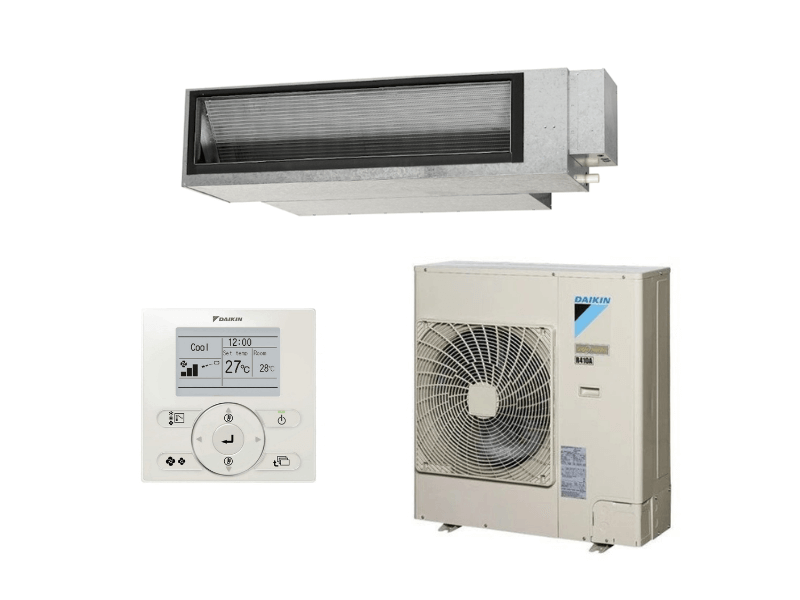

DAIKIN FDYAN125A-CV 12.5kW Inverter Ducted System | 1 Phase

Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

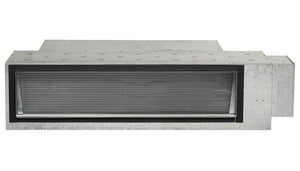

Indoor : FDYAN125AV1

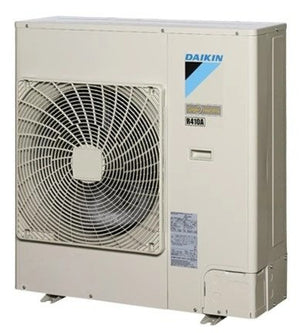

Outdoor : RZA125CV1

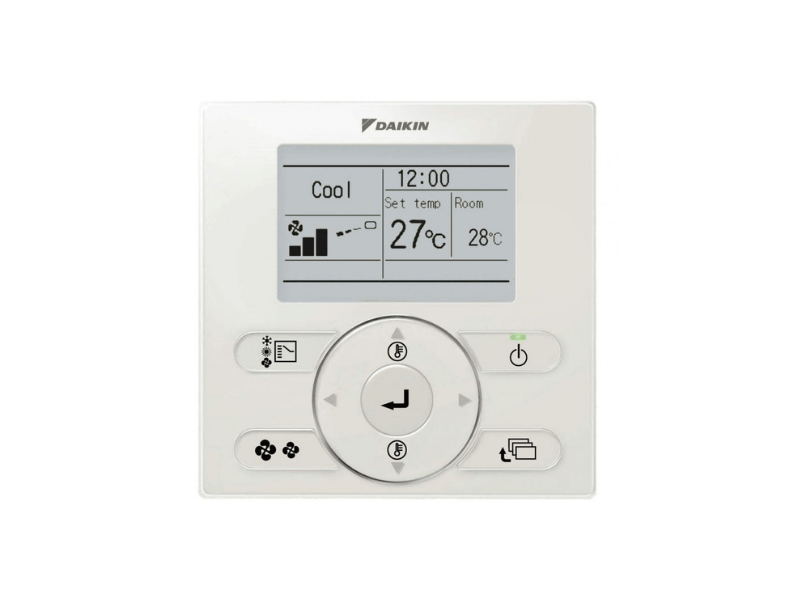

Controller : BRC1E63

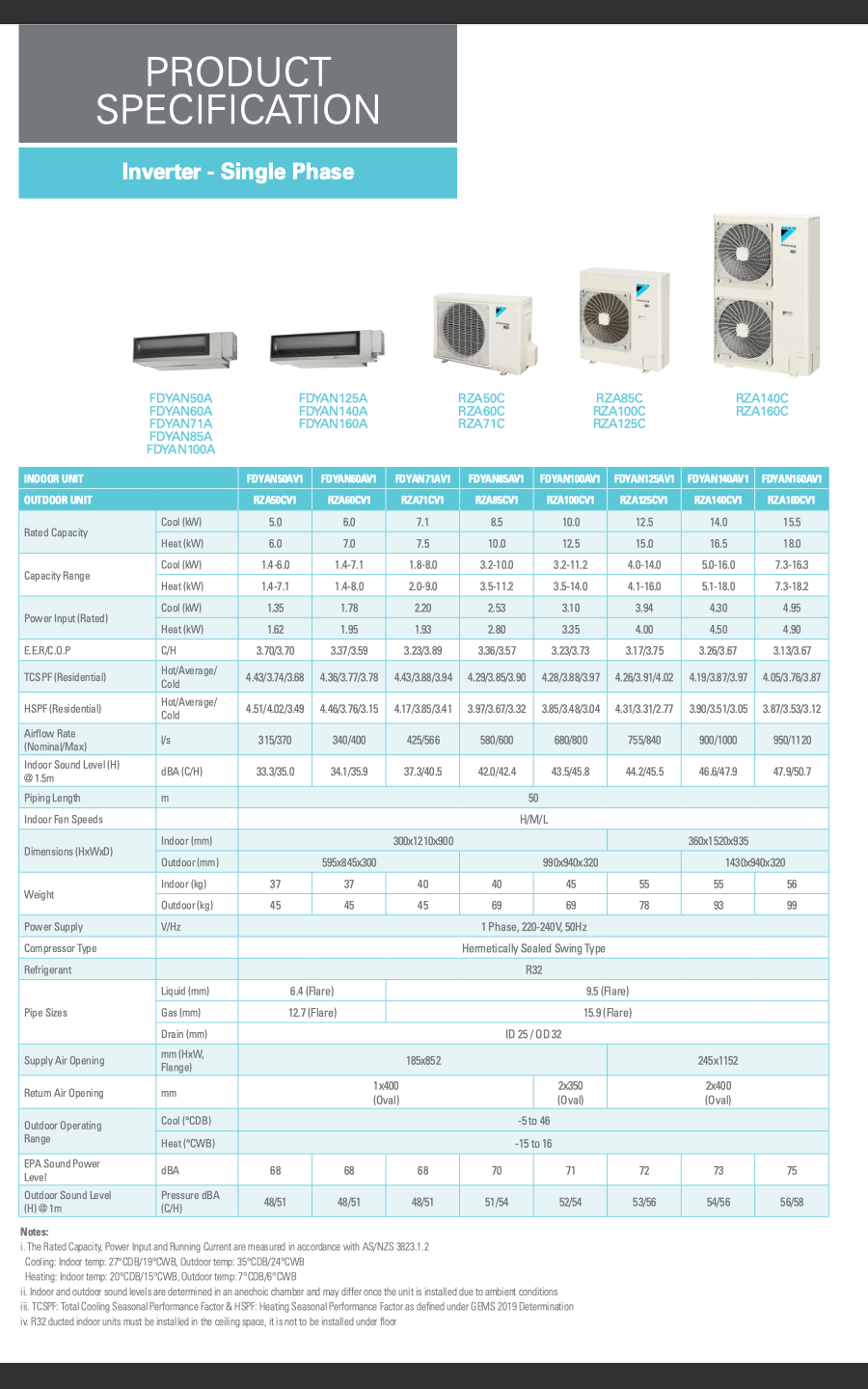

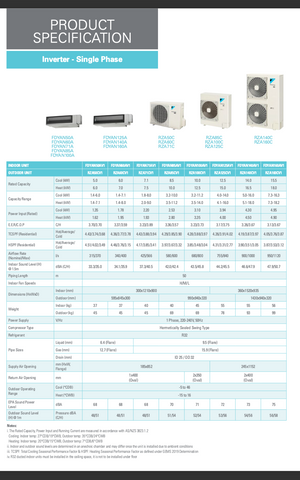

Specifications

INDOOR UNIT FDYAN125AV1
OUTDOOR UNIT RZA125CV1
Rated Capacity Cool (kW) 12.5
Heat (kW) 15.0
Capacity Range Cool (kW) 4.0-14.0
Heat (kW) 4.1-16.0
Power Input (Rated) Cool (kW) 3.94
Heat (kW) 4.00
E.E.R./C.O.P. Cool/Heat 3.17/3.75
Air Flow Rate (Rated) I/S 755
Indoor Sound Level (@1.5m) dBA 44.2/45.5
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 990x940x320
Weight Indoor(kg) 55
Outdoor(kg) 78
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 185x852
Return Air Opening mm (Oval) 2x400 (Oval)
Outdoor Operating Range Cool (°CDB) - 5 to 46
Heat (°CWB) - 15 to 16
EPA Sound Power Level dBA 72
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 53/56
